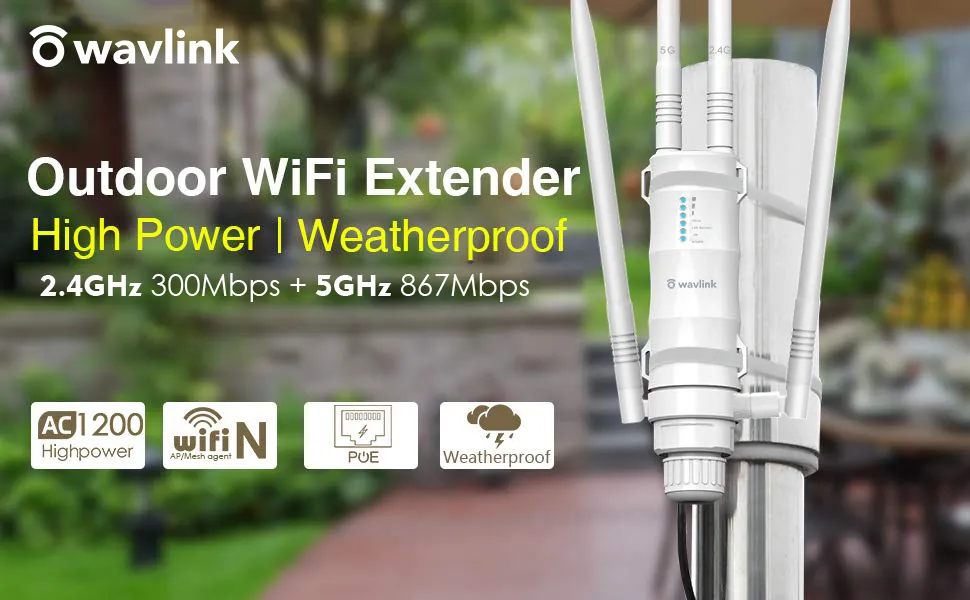

• WAVLINK AC1200 High Power Outdoor Weatherproof WiFi Range Extender/Access Point/Router/Mesh with Passive POE, Dual Band 2.4GHz 300Mbps+5.8 GHz 867Mbps, 4x7dBi Detachable Omni Directional Antenna
• Dual Band: Speed up to 2.4GHz 150Mbps and 5.8 GHz 867Mbps, high transmission power breaking down the barries of WiFi
• Weater-Proof RJ45 Connector, Integragted Passive Power over Ethernet (PoE). Passive PoE Support for Flexible Deployment
• Build in lightning arrester (15kV ESD), robust weatherproof case withstands harsh outdoor conditions.
• Multiple Operation Modes: WL-WN572HP3 supports AP, Repeater,Router, Mesh operation modes. And under AP mode, it provides Client, Client+Repeater modes for various wireless solutions.

説明: What Does This Product Do?
WL-WN572HG3 Outdoor Point To Point CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission.
It features up to 1000mW wireless transmission power and has a built-in 7dBi directional polarized antenna which provides an efficient way to pick up and maintains a stable signal for a wireless network connection ranging multiple kilometers.

How it work?
1. Place the straps through the slots on the back of the AP/Router and then around the pole Tighten the straps
2. Connect one end of an LAN cable to the POE port of the provided Power injector and the other end of the LAN cable to the LAN port of the AP/Router.
3.Connect the LAN port of the power inject t a PC using another LAN cable.
4. Plug the power adapter into a wall socket.
5. The connection will be similar to the figure below after the above steps are finished.

Description
. The AC1200 AP/Router is mainly used for providing free WiFi service in big area such as factory, community, street or etc.
. The AP/Router can take an existing 2.4GHz or 5GHz wireless signal, repeater and extend it to a longer range where it is too far away for the router or access point to reach.
. Build-in High Power Technology. Support Repeater, AP, router Mode.
. Features up to 1000 mW of power and enhanced receiver design.
. Robust weatherproof casewithstands harsh outdoor conditions.
. Weater-proof RJ45 connector, integrated Passive Power over Ethernet.
. Build inlighting arrester.
. Support 3 LEDs wireless signal strength.

Package Content
1 x WiFi AP/Router
2 x Antenna
1 x power Adapter
1 x POE Converter
1 x RJ-45 Networking Cable
1 x Main body holder
1 x Screw fitting
2 x Cable ties
1 x Quick Installation

◆全国配送無料！海外からのお取り寄せ商品のため、お届けまでに通常3-4週間程お時間を頂戴しております。◆税関にて開封される場合がございますが、新品・未使用品です。◆海外から輸送中に外箱等、若干のイタミなどが生じる場合がございますが、商品に問題はございません。どうかご了承ください。◆サイズのご相談も受け付けておりますので、お気軽にお問い合わせくださいませ。

カテゴリー:
メーカー: WAVLINK
ブランド: WAVLINK
高さ: 36.4 センチ
幅: 12.6 センチ
奥行: 7.6 センチ
重量: 0.7 Kg
